GREEN AUTOMATION AND CONTROLS

Welcome to GREEN Automation and Controls

At Green Automation and Controls, we engineer the future of industrial excellence through precision-driven automation, control panel manufacturing, and comprehensive electrical engineering solutions. With deep-rooted expertise and a commitment to innovation, we deliver turnkey automation systems—from custom control panels to advanced PLC, HMI, SCADA, VFD, and Servo-based solutions—designed to elevate operational performance across industries.

Our portfolio is strengthened through strategic partnerships with global leaders such as Siemens, Inovance, Delta, and General Gauges Borden (GIC), ensuring that every solution is built on cutting-edge technology, robust engineering, and industry best practices.

As industries evolve toward smarter ecosystems, we also provide Industrial Internet of Things (IIoT) systems and cloud-based applications that enable real-time data monitoring, remote control, predictive maintenance, and enhanced decision-making—bridging the gap between factory floor operations and intelligent enterprise systems.

Our Core Offerings:

Control Panel Design & Manufacturing
PLC, HMI, SCADA Programming & Commissioning
Drives and Servo System Integration
IIoT & Cloud-Based Automation Platforms
Instrumentation & Electrical Engineering Consultancy
Annual Maintenance Contracts (AMC)

We proudly serve a wide range of industrial sectors, providing end-to-end automation and electrical solutions tailored to the specific needs of each client. From concept to commissioning—and beyond—our mission is to deliver smart, scalable, and future-ready systems that drive productivity, safety, and digital transformation.

At Green Automation and Controls, we don’t just integrate systems—we build the intelligent backbone of modern industry.

Features & Functions:

Open loop V/F & Sensorless Vector Control
Starting torque 150% at 3 Hz in SVC mode
Modbus RTU or CANlink¹
Automatic torque boost
Slip compensation
Easy startup with simplified parameters
2 Independent S-ramps
Flexible programmable I/Os
Variable DC injection braking
Comprehensive diagnostics
Output frequency: 500 Hz
Built-in dynamic braking unit

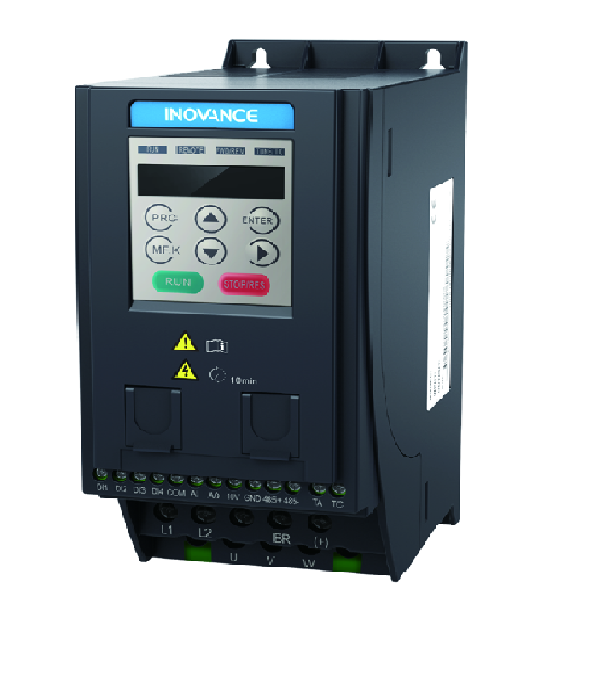

MD 200 Model Numbers:

MD200S0.4B-INT
MD200S0.75B-INT
MD200S1.5B-INT
MD200S2.2B-INT
MD200T0.4B-INT
MD200T0.75B-INT
MD200T1.5B-INT
MD200T2.2B-INT
MD200T3.7B-INT

Features & Functions:

Control Modes: Open-loop V/F and Sensorless Vector Control (SVC)
Starting Torque:
- 150% at 0.5 Hz (SVC)
- 100% at 1.0 Hz (V/F)
Communication Interfaces: Modbus RTU or CANlink¹
Automatic Torque Boost
Slip Compensation
Easy Startup: Simplified parameter settings
Acceleration/Deceleration Control: 4 Independent S-Ramps
Flexible Programmable I/Os
Braking: Variable DC Injection Braking
Diagnostics: Comprehensive trip diagnostics
Output Frequency: Up to 500 Hz
Built-in Dynamic Braking Unit

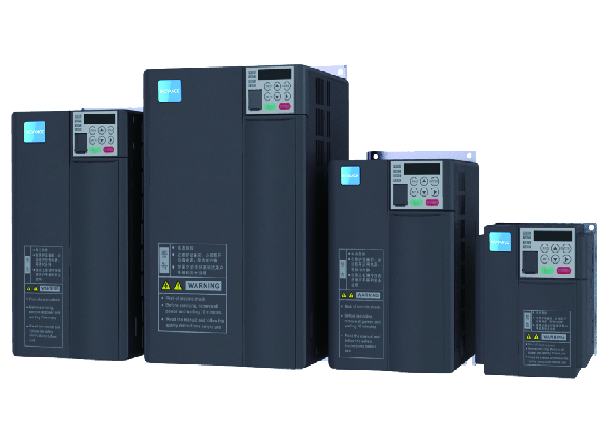

MD310 Series Model Numbers:

MD310T0.4B-INT
MD310T0.7B-INT
MD310T1.5B-INT
MD310T2.2B-INT
MD310T3.7B-INT
MD310T5.5B-INT
MD310T7.5B-INT
MD310T11B-INT
MD310T15B-INT
MD310T18.5B-INT

Accessories & Special Modules:

MD38PG4
MD38PGMD
MD38IO1
MD38IO2
MD38IO3
MD310-IO1
MD38CAN1
MD38CAN2
MD38DP1
MD38DP2
MD38TX1
MD500-PN1
MD310-CANL
MD38PC1
SOP-20-CP
SOP-20-810
MDKE + MDCAB
MDKE7 + MDCAB
MDKE8
MDKE9
MDCAB
MDCAB-1.5
MD310-KEY1
MD32NKE1
Special Software

Features & Functions:

Control Modes: Open-loop V/F and Sensorless Vector Control (SVC)
Starting Torque:
- 150% at 0.5 Hz (SVC)
- 100% at 1.0 Hz (V/F)
Communication Interfaces:
- Modbus-RTU
- PROFIBUS-DP
- CANopen
- CANlink
- PROFINET
Automatic Torque Boost
Slip Compensation
Easy Startup: Simplified parameter settings
Acceleration/Deceleration Control: 4 Independent S-Ramps
Flexible Programmable I/Os
User Programmable Functions
Braking: Variable DC Injection Braking
Diagnostics: Comprehensive trip diagnostics
Output Frequency: Up to 500 Hz
Built-in Dynamic Braking Unit

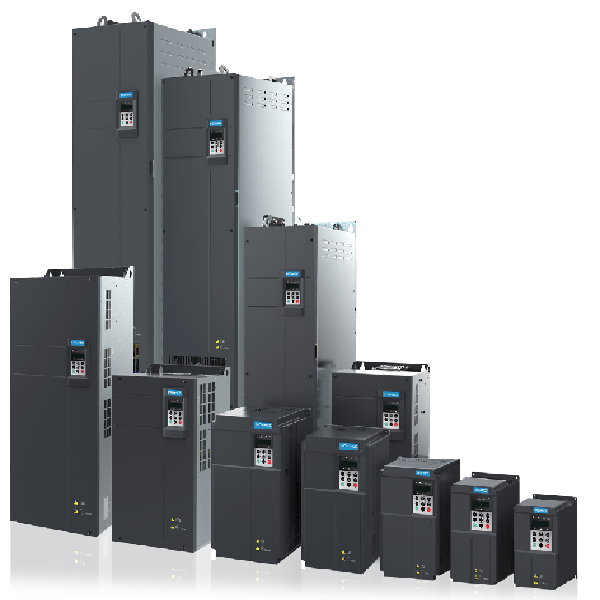

MD290 Model Numbers:

MD290T0.7G/1.1PB-INT
MD290T1.5G/2.2PB-INT
MD290T2.2G/3.0PB-INT
MD290T3.7G/5.5PB-INT
MD290T5.5G/7.5PB-INT
MD290T7.5G/11PB-INT
MD290T11G/15PB-INT
MD290T15G/18.5PB-INT
MD290T18.5G/22PB-INT
MD290T22G/30PB-INT
MD290T30G/37PB-INT
MD290T37G/45PB-INT
MD290T45G/55PB-INT
MD290T55G/75PB-INT
MD290T75G/90PB-INT
MD290T90G/110PB-INT
MD290T110G/132PB-INT
MD290T132G/160PB-INT
MD290T160G/200P-INT
MD290T200G-INT
MD290T220P-INT
MD290T220G-INT
MD290T250P-INT
MD290T250G-INT
MD290T280P-INT
MD290T280G-INT
MD290T315P-INT
MD290T315G-INT
MD290T355P-INT
MD290T355G-INT
MD290T400P-INT
MD290T400G-INT
MD290T450P-INT
MD290T450G-INT
MD290T500P-INT

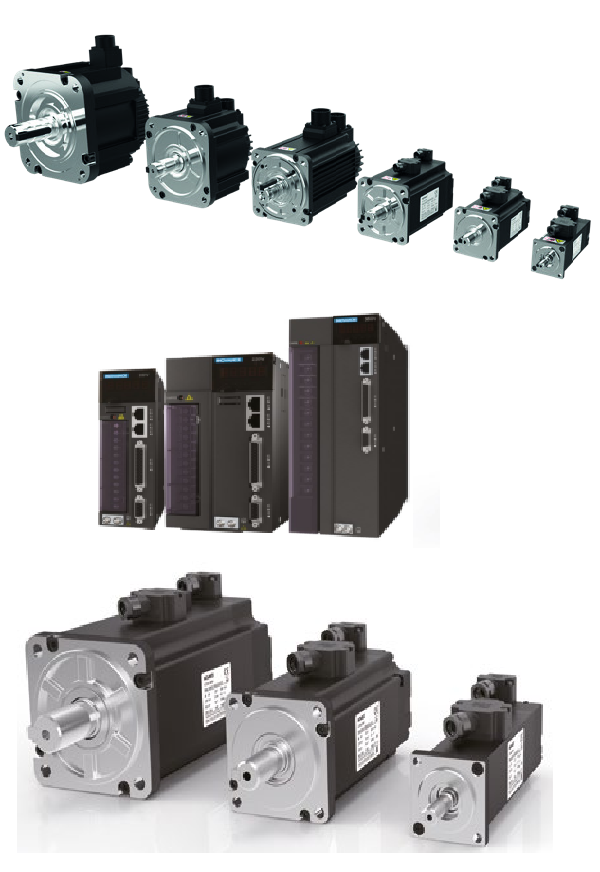

MS1 Series Servo Motor - Key Features

High Precision: 23-bit resolution multi-turn absolute encoder
Reliable Operation:
- IP67 rating (shaft opening fulfills IP65 with oil seal option)
- Low cogging torque – only 1% of rated torque
Wide Selection:
- Motor frame sizes: 40, 60, 80, 100, 130, 180 mm
- Rated torque range: 0.16 Nm to 48.0 Nm
- Low and medium inertia options
- Rated speeds: 1,500 rpm or 3,000 rpm
Powerful Performance: Rated torque 350% (for 750 W or less MS1 motors)

Rated Power: 50 W to 7.5 kW
Rated Torque: 0.16 to 48 N·m
Base Speeds: 3,000 rpm and 1,500 rpm (max up to 6,000 rpm)
Inertia Types: Low and Medium
Frame Sizes: 40, 60, 80, 100, 130, 180 mm

Common Family Features (All MS1 Motors)

IP67 protection rating
CE and UL compliance
Encoder Options (Inovance Serial):
- Standard: 23-bit, ±15 arcseconds
- Optional: 26-bit, ±2 arcseconds
Single or multi-turn absolute operation
Compatible Drives: IS810, SV660, SV670, SV680

MS1H1 / H4 Series (Smaller Torque Range)

Torque Range: 0.16 to 3.2 N·m
Connectors: Easy-to-use type
Max Peak Torque: 350%
Torque Ripple: <0.5%

MS1H2 / H3 Series (Larger Torque Range)

Torque Range: 3.2 to 48 N·m
Connectors: Military-spec
Max Peak Torque: 300%
Torque Ripple: <1%

MS1H Series Models:

MS1H1-10B30CB-A330Z-INT
MS1H1-10B30CB-A332Z-INT
MS1H1-20B30CB-A332Z-INT
MS1H1-20B30CB-A334Z-INT
MS1H1-40B30CB-A334Z-INT
MS1H4-40B30CB-A334Z-INT
MS1H1-75B30CB-A332Z-INT
MS1H4-75B30CB-A334Z-INT
MS1H3-85B15CB-A331Z-INT
MS1H3-85B15CB-A334Z-INT
MS1H2-10C30CB-A331Z-INT
MS1H3-13C15CB-A332Z-INT
MS1H3-13C15CB-A334Z-INT
MS1H2-15C30CB-A331Z-INT
MS1H3-85B15CD-A331Z-INT
MS1H3-85B15CD-A334Z-INT
MS1H2-10C30CD-A334Z-INT
MS1H3-13C15CD-A331Z-INT
MS1H3-13C15CD-A334Z-INT
MS1H3-18C15CD-A331Z-INT
MS1H3-18C15CD-A334Z-INT
MS1H2-20C30CD-A331Z-INT
MS1H2-25C30CD-A331Z-INT
MS1H3-29C15CD-A331Z-INT
MS1H2-30C30CD-A331Z-INT
MS1H3-44C15CD-A331Z-INT
MS1H2-50C30CD-A331Z-INT
MS1H3-55C15CD-A331Z-INT
MS1H3-75C15CD-A331Z-INT

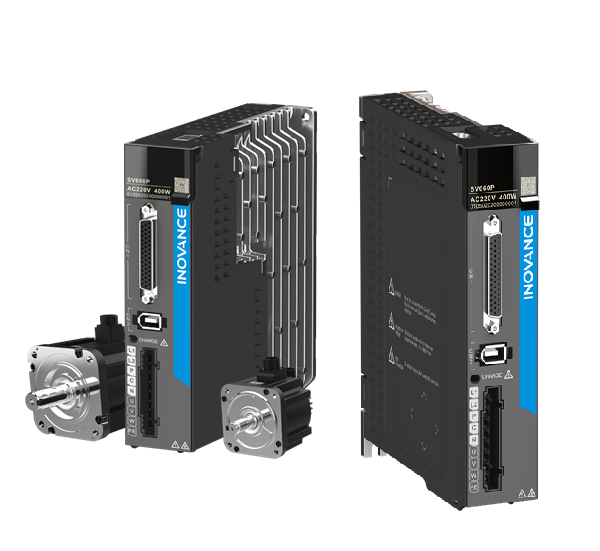

SV660 Servo Drive – Key Features

User-Friendly Installation: Easy set-up and tuning
Communication Options:
- CANopen (C) and CANlink (A) variants available
- Built-in RS232 port (for PC connection)
- Built-in RS485 port (Modbus RTU protocol)
Feedback Encoder:
- 23-bit serial single/multi-turn absolute encoder
- Provides 8,388,608 pulses per mechanical turn
- Retains multi-turn data on power-down – no need for homing
Control & Protection:
- Multi-position control support
- IP20 rating
- Isolated cooling channel prevents internal dust contamination
- Conformally coated PCBs rated for 3S2 and 3C3 environments (IEC 60721-3-3)
Power Compatibility: All 200 V models support single-phase 200 V input
Compact Design: 30% smaller footprint vs. previous generation
Fast Commissioning:
- Pluggable connectors to avoid wiring mistakes
- STune: Calculates gains based on stiffness setting
- ETune: Automatically adjusts gain parameters
Easy Cloning: Clone parameters across multiple SV660 drives with software
PC Software Features:
- Guided setup with advanced wizard
- Graphical UI – no specialist skills required
- Software provided free of charge
- Optional communication cable (S6-L-T00-3.0) required

SV660 Series Servo Drive Models:

SV660PS1R6I-INT
SV660PS2R8I-INT
SV660PS5R5I-INT
SV660PS7R6I-INT
SV660PS012I-INT
SV660PT3R5I-INT
SV660PT5R4I-INT
SV660PT8R4I-INT
SV660PT012I-INT
SV660PT017I-INT
SV660PT021I-INT
SV660PT026I-INT

⚙️ IS620 Series Servo Drive – Key Features

High Performance

Current loop bandwidth: > 4 kHz
Speed loop bandwidth: 1.2 kHz

Wide Range

Supply Voltages:
- Single-phase 220 V
- Three-phase 220 V
- Three-phase 380 V
Power Range: 0.1 kW to 7.5 kW

Network Compatibility

Pulse/Analog: IS620P series
EtherCAT: IS620N series
CANopen: IS620-C0 series

Easy to Use

Keypad commissioning
PC tuning using InoServoShop software

Smart Tuning Features

Inertia auto-tuning (on-line/off-line)
Automatic gain tuning
Adaptive notch filter
Damping filters for low-frequency resonance

IS620 Series Servo Drive Models:

IS620PS1R6I-INT
IS620PS2R8I-INT
IS620PS5R5I-INT
IS620PS7R6I-INT
IS620PS012I-INT
IS620PT3R5I-INT
IS620PT5R4I-INT
IS620PT8R4I-INT
IS620PT012I-INT
IS620PT017I-INT
IS620PT021I-INT
IS620PT026I-INT

Vision

"Our vision is to become the world's most admired 'Eco Friendly Solution Provider' company."

Mission

"Our mission is to create a world-class 'GREEN Automation' company by delivering innovative, eco-friendly automation solutions that power the industries of tomorrow."
